10G SFP+ To 10G SFP+ AOC Ethernet Cable Rack Connection Infiniband QDR / DDR / SDR

Product Categories
Color Optic Limited
Contact Now

10G SFP+ To 10G SFP+ AOC Ethernet Cable Rack Connection Infiniband QDR / DDR / SDR

Brand Name : Coloroptic

Model Number : C-ACQ40-Q40-x

Certification : CE, UL, FDA, RoHs, FC, TUV

Place of Origin : China

MOQ : 10

Price : Negotiable

Payment Terms : T/T

Supply Ability : 5000 per month

Delivery Time : 10 days

Packaging Details : Cartons

Cable Type : AOC

Data Rate : 10G to 10G

Length : 1~20m

Standard : SFF-8431 SFF-8432 SFP+ MSA

Jacket : PVC

Warrenty : 3 years

Contact Now

AOC Cable 10G SFP+ To 10G SFP+ In-Rack Connection Infiniband QDR/DDR/SDR

General Description

The SFP+ active optic cables are a high performance, low power consumption, short range interconnect solution supporting InfiniBand QDR/DDR/SDR,12.5G/10G/8G/4G/2G fiber channel, PCIe and SAS. It is compliant with the SFP+ MSA and IEEE P802.3ba. SFP+ AOC is one kind of parallel transceiver which provides increased port density and total system cost savings.

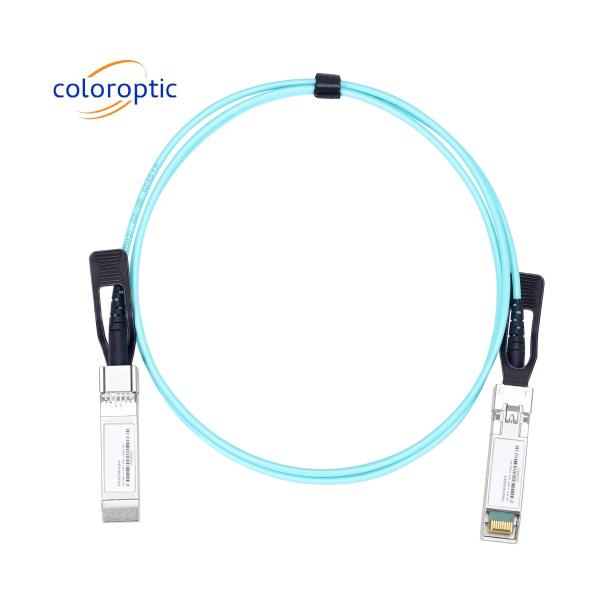

10G SFP+ To 10G SFP+ AOC Ethernet Cable Rack Connection Infiniband QDR / DDR / SDR

Product Details
Absolute Maximum Ratings
Parameter Symbol Min Max Unit
Storage Temperature Ts -40 +85 °C
Operating Humidity RH 0 85 %
Supply Voltage Vcc -0.5 3.6 V

Recommended Operating Conditions
Parameter Symbol Min Typical Max Unit
Operating Case Temperature Tc 0 +70 °C
Supply Voltage Vcc 3.14 3.3 3.46 V
Supply Current Icc 250 mA
Bit Rate BR 10.3125 11.3 Gbps

Electrical Characteristics
Parameter Symbol Min Typical Max Unit Notes
Transmitter Characteristics
Input differential impedance Rin 100 Ω 1
Differential data input swing Vin,pp 180 700 mV
Transmit Disable Voltage VD 2 Vcc V
Transmit Enable Voltage VEN Vee Vee+0.8 V
Receiver Characteristics
Differential data output swing Vout,pp 300 850 mV 2,5
Data output rise time, fall time tr 28 ps 3
LOS Fault VLOS fault 2 VccHOST 4
LOS Normal VLOS norm Vee Vee+0.8 4

Key Features
  • Hot-pluggable SFP+ cable ends
  • Supports 10.3125Gbps bit rate
  • Pre-terminated twin axial cable / fiber cable
  • Operating environment temperature -5 ~ 70℃
  • Low power consumption
  • SFP+ housing with enhanced EMI shielding
  • Single 3.3V power supply
  • Available in lengths up to 20m
Application
  • 10G Ethernet
  • 10G Fiber Channel over Ethernet
  • Applicable to 1X QDR / 1X DDR / 1x SDR Infiniband
  • High capacity IO with SFP+ interface
  • Data center and in-rack connection
